(AFD-010-A) 1″ Double Anchor Fastener Assembly (short)
These parts are 100% equivalent to the following manufacturers:
80/20 #3090, T-SLOTS #651036
Product Description
10 Series 1″ Double Anchor Fastener Assembly (short), #AFD-010-A
This ad is for one 1 assembly.
These parts are 100% equivalent to the following manufacturers:
80/20 #3090, T-SLOTS #651036
These Double Anchor Fastener assemblies are the strongest way to connect two 10 or 25 Series T-Slotted extrusions together at 90°.
- They allow for easy positioning and re-positioning of the extrusions with a 9/32″ Ball-End Allen Key.

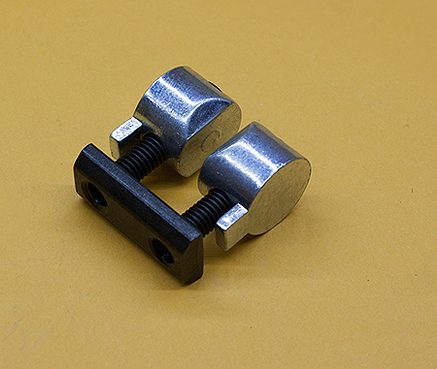

- The assembly includes (2) Zinc Anchor Fastener Cams, (2) #10-32 x 3/4″ SHCS, and (1) #10-32 Short Double Standard T-Nut.
- The connectors are flush when installed, and provide a very clean and esthetic look. Ideal when Joining Plates or Corner Brackets cannot be used.
- Machining instructions: a Ø0.563 (9/16″) two flute endmill is required to make the counterbore. The counterbore needs to be machined at 0.406″ from the edge, and 0.425″ deep.
- These parts are BRAND NEW, and are deeply discounted from the list price.
Additional Information
| Weight | 0.007 lbs |
|---|---|
| Dimensions | 0.02 × 0.02 × 0.02 in |
